PA66 GF15 With High Tensile Strength (A2307C, A2317C) for Engineering Plastics

Name: PA66 GF15 With High Tensile Strength
Brand: Suzhou Anmei Material Technology Co., Ltd.

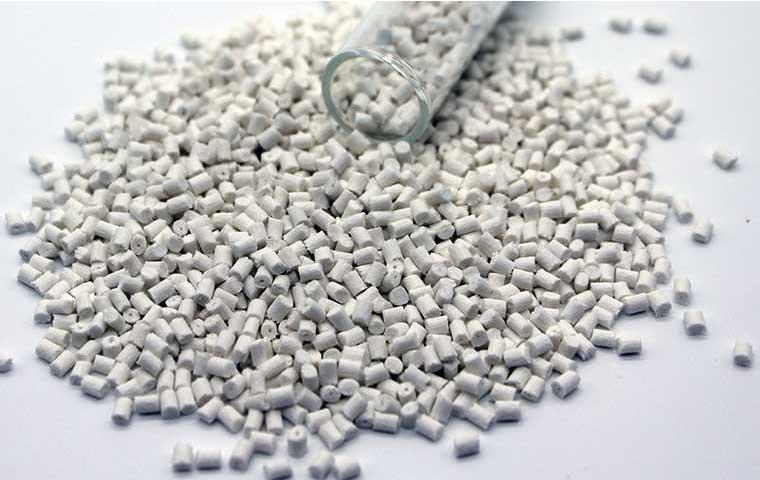

PA66GF15 is a 15% glass fiber reinforced, toughened, polyamide 66 resin for injection molding.

Typical Application of PA66 GF15 With High Tensile Strength (A2307C)

PA66 15% glass fiber and high toughness modified grades are applied to the sectors of electrical switch with high tensile characteristics.

Physical Property

Mechanical Properties

Tensile strength (105.0MPa 1 ISO527) Conditioned	5mm/ min
Tensile Strain at Break (2.6% I ISO527) Conditioned	5mm/min
Notched Impact Strength (10.0 KJ/m2 I ISO179) Conditioned	1.0J
Flexural Strength (177MPa 1ISO178) Conditioned	2mm/min
Flexural Modulus (5050 MPa I ISO178) Conditioned	2mm/min

Thermal Property

Melting Point	(260°C I ISO11357)
Hot Deformation Temperature	(225*C I ISO75)
Conditioned	1.8MPa
Flammability Class	(HB 1UL94)
Conditioned	mm

Injection Molding Conditions

* Molding conditions are just for reference, please make an adjustment based on the actual situation！
