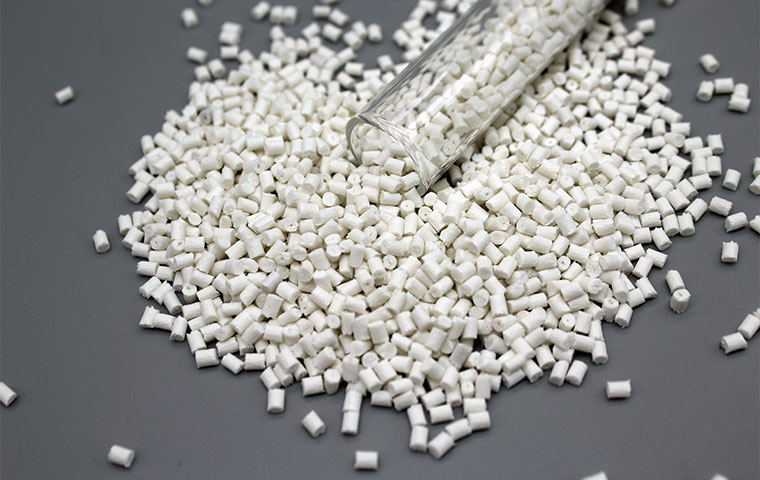

PA6 GF15 is a 15% glass fiber reinforced, polyamide 6 resin for injection molding. PA6 plastic material has the shortcoming of easy absorption of water, which affects the dimensional stability and electrical properties to a certain extent. High glass fiber content can reduce molding shrinkage and increase dimensional stability. PA6 GF15% can increase the molding shrinkage rate of PA6 to 0.5-0.8%
PA6+GF15% works for heat dissipation binaries, wheel covers, coolant pots, and accumulator shells of auto parts and lawn mower housing of hardware appliances as well.
Prior to blending. PA6 and PA6/GF were dried at 130*C tor 3hin vacuum oven to remove most of the absorbed busty.
Physical Property
| Ash | (15.0% 1 ISO3451/1) |
| Conditioned | 600°C*2h |
| Density | (1250Kg/m3 1 ISO1183) |
| Conditioned | 23°C |
| Shrinkage Parallel Flow | (0.5-0.7 % 1 ISO294-4) |
| Shrinkage Vertical Flow | (0.7-1.1% I ISO294-4) |
Mechanical Properties
Tensile strength (125.0MPa 1 ISO527) Conditioned | 5mm/ min |
Tensile Strain at Break (2.5% I ISO527) Conditioned | 1.0J |
Notched Impact Strength (125 0MPa I ISO527) Conditioned | 2mm/min |
Flexural Strength (190MPa 1ISO178) Conditioned | 2mm/min |
Flexural Modulus (5700 MPa I ISO178) Conditioned | 5mm/ min |
Thermal Property
| Melting Point | (220°C I ISO11357) |
| Hot Deformation Temperature | (175*C I ISO75) |
| Conditioned | 1.8MPa |
| Flammability Class | (HB 1UL94) |
| Conditioned | mm |
Injection Molding Conditions
| Drying Temperature | 130°C |
| Drying Time | 3h |
| Cylinder Temperature | 240-260°C |
| Nozzle Temperature | 240-260*C |
| Tooling Temperature | 80*C |
* Molding conditions are just for reference, please make an adjustment based on the actual situation！
